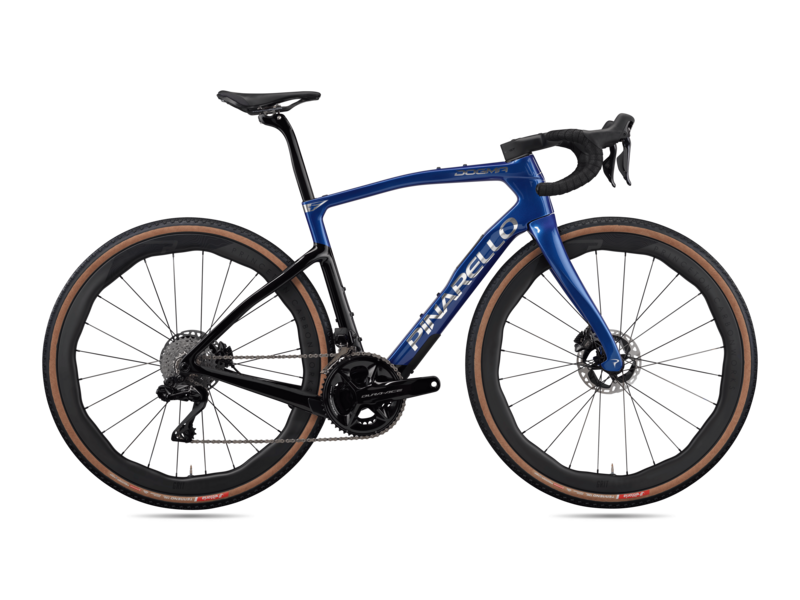

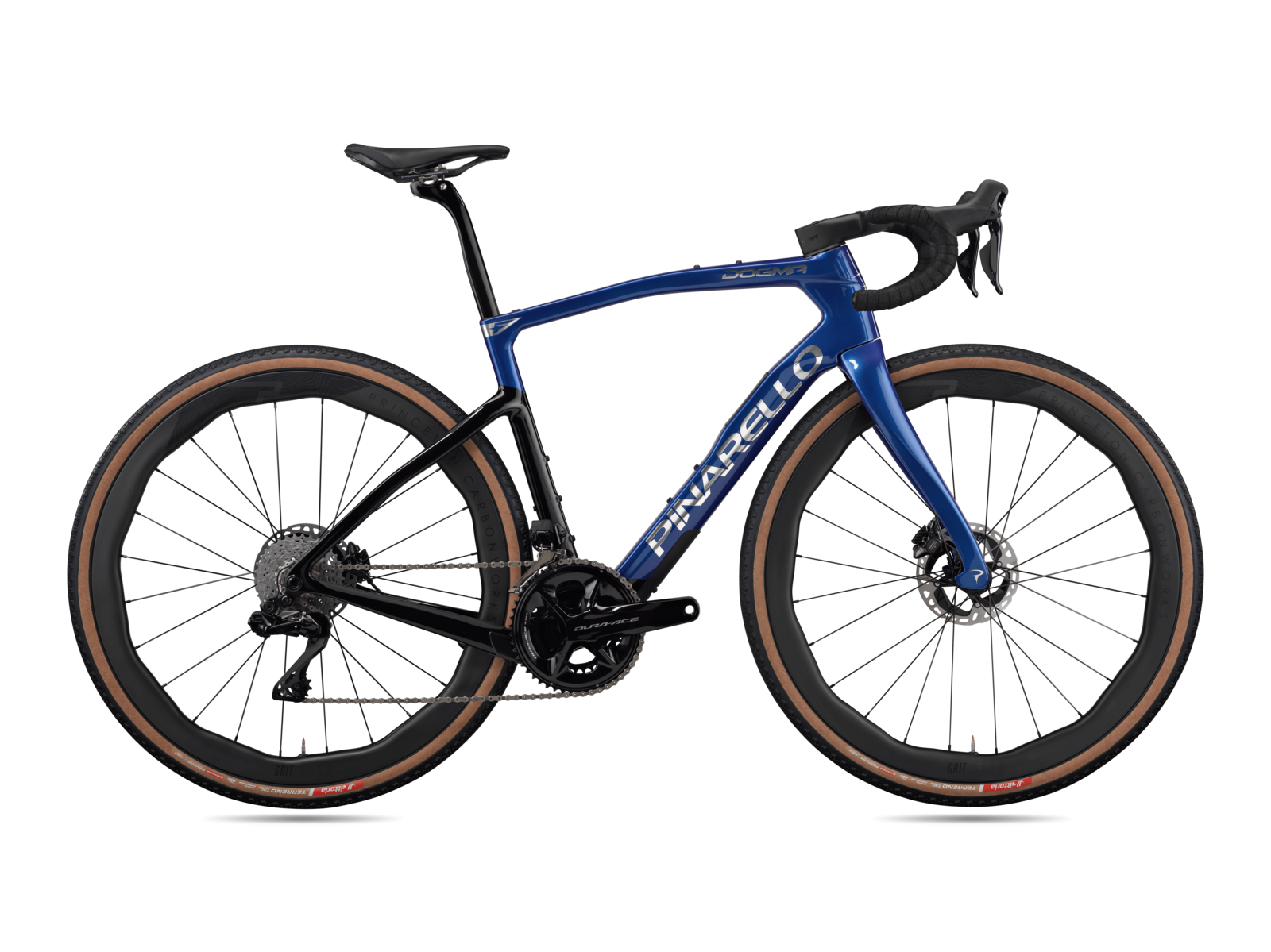

Pinarello Dogma GR Frame Kit 2025

* Frame, fork & seatpost only
Pricing
£5500.00
PLEASE CALL / EMAIL FOR AVAILABILITY
Specs
Related
Reviews
Model Year 2025
Options 43cm Luxter Blue Please Call / Email For Availability
46.5cm Luxter Blue Please Call / Email For Availability
50cm Luxter Blue Please Call / Email For Availability
51.5cm Luxter Blue Please Call / Email For Availability
53cm Luxter Blue Please Call / Email For Availability
54.5cm Luxter Blue Please Call / Email For Availability
56cm Luxter Blue Please Call / Email For Availability
57.5cm Luxter Blue Please Call / Email For Availability
59.5cm Luxter Blue Please Call / Email For Availability
Style NEW FLAGSHIP GRAVEL BIKE EXTENDS VERSATILE AND COMPETITION-FOCUSED GRAVEL RANGE

Pinarello has unveiled its new, flagship gravel bike, the DOGMA GR, as well as launching the next generation of its Grevil F Series.

The DOGMA GR - just like the iconic DOGMA F and DOGMA XC bikes with which it shares its name - has been developed to combine incredible performance, cutting-edge technology and aesthetic beauty, and deliver a pure racing machine which stands out from the crowd.

Combining the speed of a DOGMA F, the off-road handling of the Crossista, and the power transfer of the DOGMA XC, it is a bike built to excel in efforts of under five hours where speed and stability are critical in the quest to win races.

Following the demands of WorldTour athletes, the DOGMA GR was developed to meet the requirements to compete at the highest level of gravel racing around the world. Recognizing a gap in the gravel market, Pinarello engineered a performance machine that excels in aerodynamics, compliance, and weight.

THE KEY FEATURES OF THE DOGMA GR INCLUDE:

Unrivalled lightness - the DOGMA GR is the lightest aero gravel bike on the market, with the frame weighing just 960g and a complete bike (fitted with Sram Red groupset, Princeton Grit 4540 EVO wheels and Vittoria 40mm tires) tipping the scales at 7.35kg.

M40X carbon fiber - the most advanced layup on the market which is lightweight, responsive and durable (with a tensile modulus of 377). Assets already proven on the DOGMA F.

Nose-shaped headtube - delivering improved frontal aerodynamic efficiency.

ONDA fork - The specialist shape and carbon layup also ensure an ideal level of vertical compliance and enhanced vibration absorption to maintain ground contact and traction.

Hidden front thru axle thread - improving aerodynamic performance whilst enhancing the clean design athletic
of the fork.

Talon Ultrafast GR handlebar - adopting the same geometry as the Talon Ultrafast, with a 7 degree flare and 7 degree inward
bend, as well featuring two rivets on top which can accommodate TT gravel bars (see below).

Optimized 42mm tire clearance - offering the optimal balance between speed, aerodynamics and all-terrain versatility. Front clearance can be extended to accommodate 45mm tires.

Race geometry - inspired by the Crossista to ensure the ultimate in high-speed performance, maximum responsiveness and all-terrain versatility.

Adaptive seatpost - with a longitudinal flex of 8mm to provide a lightweight and efficient solution to absorb vibrations without sacrificing power transfer.

Aero Load System - optimized to carry ride essentials, an in-frame down tube storage port to seamlessly integrate a toolbag and top tube bag mountings, both of which are included in frame weights. Accessories sold separately.

TT gravel bars* - produced from carbon with a fixed tilt of +10 degree, adjustable reach and stack on both the extension and pads, and an integrated computer mount.

Sizing - available in nine size options, to truly customize the ride fit.
Frame TorayCa M40X, TiCR Cable Routing, Italian BB
Forks NEW eTICR Onda Fork with ForkFlap, 1.5' upper and lower steerer
Seatpost Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
